FiberGuide® Fiber Management Systems
)
)
)
)
)
)
FiberGuide is a raceway system designed to protect and route fiber optic patch
cords, multi-fiber cable assemblies and intrafacility fiber cable (IFC) to and from
f
iber splice enclosures, fiber distribution frames and fiber optic terminal devices.
FiberGuide ensures a two-inch minimum bend radius is maintained throughout
the system. Tool-less, Snap-Fit™ junction options significantly reduce the amount of
time required for installation.

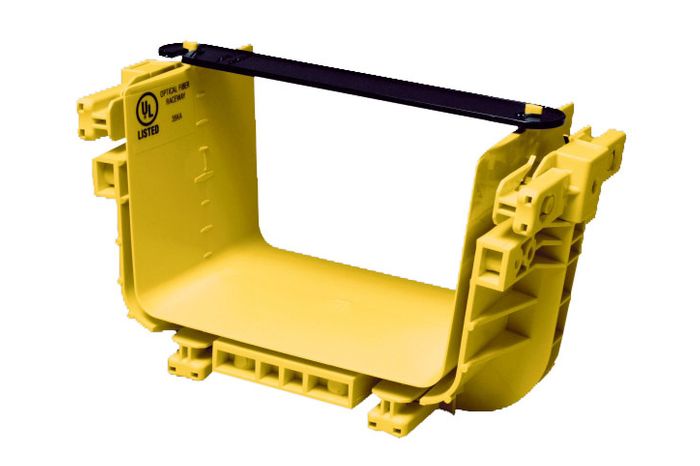

The FiberGuide system is a complete set of products designed and manufactured
to ensure total off-frame protection and ease of use. Basic components
include horizontal and vertical straight sections, horizontal and vertical elbows,
downspouts, junctions and numerous support hardware and flex vertical kits.
Available in a variety of sizes:
2x2 – Ideal for smaller installations or for vertical routing of a maximum of four
hundred 2 mm fiber optic patch cords. All 2x2 FiberGuide products are shipped
with covers.
2x6 – Designed for height restricted environments, this robust system provides
the same support and system flexibility of the traditional 4-inch-high system while
saving 2 inches of overhead space. It features a maximum capacity of 1,200,
2 mm patch cords.
4x4 – Features the maximum capacity to support 1,600, 2 mm patch cords. It has
been engineered to allow straight sections to be self-supporting over a span of up
to 1.83 m (6 feet).
4x6 – Features the same benefits of the 4-inch system and a maximum trough
capacity of 2,400, 2 mm patch cords.
4x12 – The 12-inch-wide trough has a maximum capacity to support nearly 5,000,
2 mm patch cords. Perfect for runs over fiber frame lineups and
perimeter routes.
4x24 – The 4x24-inch system is the ultimate raceway solution to securely route
and protect patch cords over high-density optical distribution frames including
CommScope's Next Generation Frame (NGF) and Next Generation 3 Frame
(NG3®). Designed for maximum capacity, this robust system provides the same
support and flexibility as the traditional 4x12-inch system while doubling capacity.
Features & Benefits
Speed of Installation

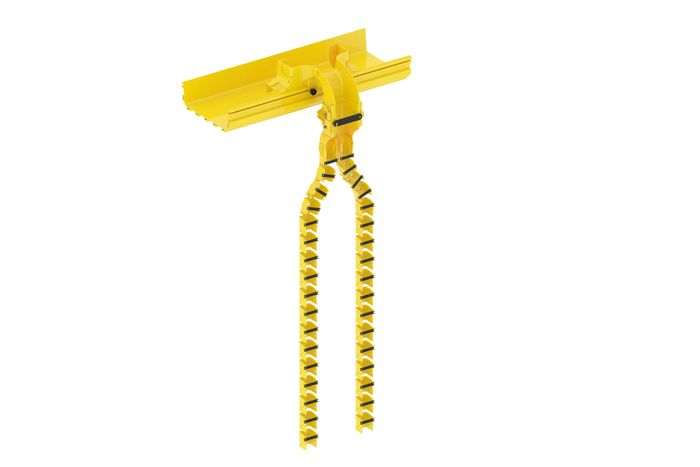

FiberGuide® systems feature a variety of products that allow for quick and easy installation. Express Exit™ drops as well as tool-less products
including Snap-Fit™ junctions, snap-on covers and hinged cover options save valuable time for installers.
Speed of Deployment
The Express Exit system enables new drops to be added or removed quickly and easily. A drop can be added into a fully loaded raceway in
seconds—without cutting.
Raceway Flexibility
FiberGuide features over 150 support structures, over 200 fittings, multiple drop options and several other components to suit any
application you create.
Fiber Protection
CommScope's expertise translates into maximum protection for your network. Two-inch minimum bend radius is maintained throughout
the system regardless of the raceway size.
Strength and Durability
100% raceway reliability—stands up to any challenge.
