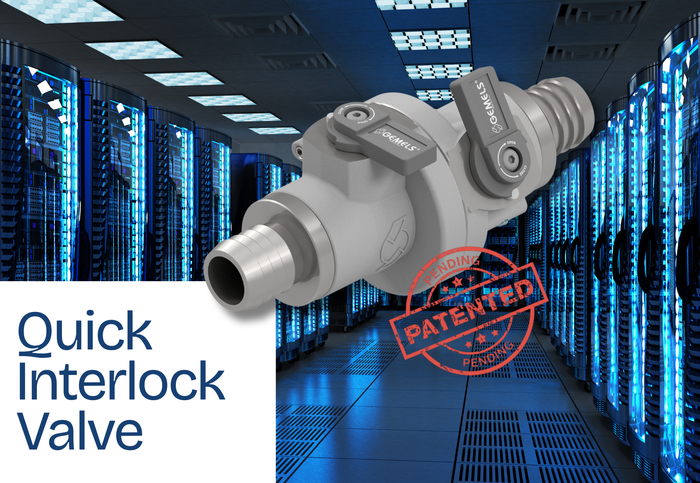

Quick Interlock Valve – GEMELS Patented Solution for Data Center Cooling Systems
)
Innovation secured by patent. GEMELS' new Quick Interlock Valve is ready to shape the future of cooling systems — delivering unmatched reliability in the most demanding Data Center environments through robust materials, swivel closure ends, and integrated proximity sensing.
Engineered for maximum safety and efficiency, the GEMELS Quick Interlock Valve is a patented coupling solution designed specifically for cooling systems in Data Centers. Its smart architecture combines robust ASTM A351 Gr. CF8M austenitic stainless-steel castings with all AISI 316 components, making it ideal for high-pressure, high-reliability fluid management.
Key Advantages:
- Twin Identical Parts – Single part number simplifies ordering and inventory management
- Swivel Closure Ends – Eliminates hose twisting for longer hose life and easier handling
- Safety Coupling – Opens only when fully connected, preventing leaks and spills
- Remote Monitoring – Integrated proximity sensor provides tamper alerts and enhanced security
- 316 Stainless Steel – Maximum strength and corrosion resistance throughout
Technical Specifications:
- Material: ASTM A351 Gr. CF8M / AISI 316 stainless steel
- Type: Ball valve with front quick connection
- Ends: BSPP, SAE, NPT, BARBS (low pressure)
- Max Pressure: 1,500 PSI (103 bar)
- Temperature Range: –30°C to +120°C
- Seals rated for water, inert gases, and gelatinous fluids
