Design

• Flush finish panel with colour matched top channel and screen posts.
• All aluminium components with stainless steel fixings.
• Heights available in 100mm increments
• Screen area 8.5 kg/m² (not including added acoustic elements)
• Provides a complete visual block.
• Peacemaker acoustic panels can be added to provide an effective sound absorber to the internal face.

Application

• Available on all Configured Platforms screen systems.
• Provides a visual screen.

Versatile

• Polyester powder coated to RAL or BS colour ranges.
• Special finishes on request.
• Configurable in 600mm increment lengths to suit your requirements.
• The lightweight aluminium design makes it easy for carrying, craning and assembly.

Installation

• Kit form allows assembly by general installer trade with our easy to follow installation manual.
• Take advantage of our approved installer network to obtain the most efficient install.

Specify Flatscreen

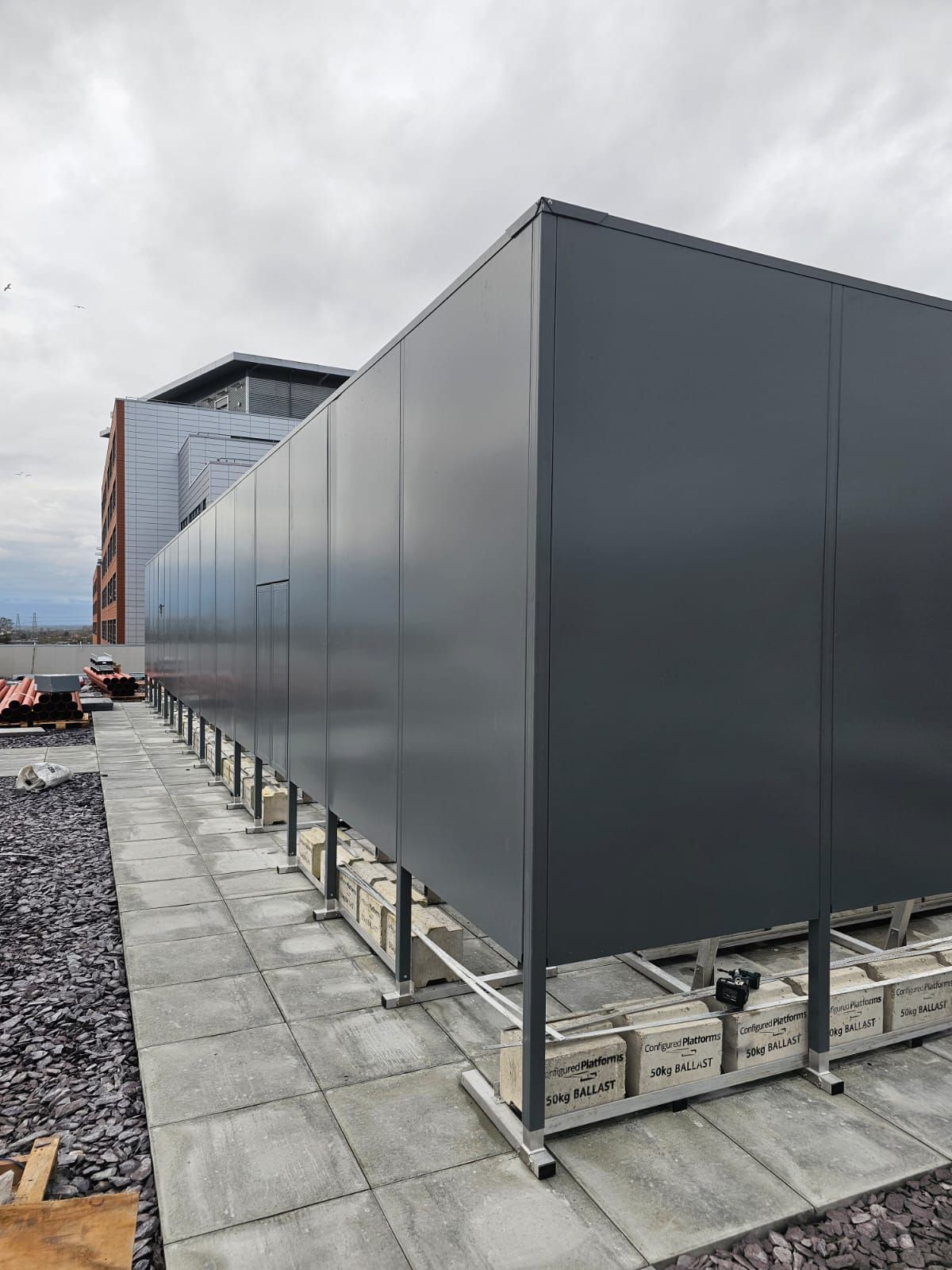

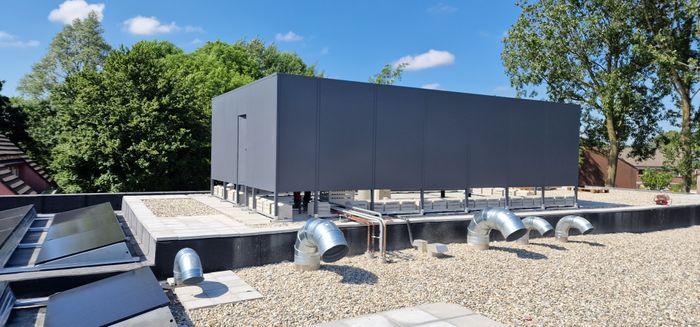

• Provide Configured Platforms Flatscreen to elevations where aesthetically required to screen off equipment, ductwork, and pipework.
• Complies to BS EN 516 2006 and BS EN 1090-3 2008
• Backed by a 20 year product warranty.

Access Gaps and Doors

• An Access Gap of any 600mm increment wide is configurable in Flatscreen
• A Self Closing Access Door 600mm wide is configurable in Flatscreen. Left hand hung opening inwards.
• A Self Closing Double Access Door 1200mm wide (2 x 600mm doors) is configurable in Flatscreen opening inwards.
