Design

• Prestigious traditional louvre design.
• All aluminium components with stainless steel fixings.
• Heights available in 100mm increments
• Screen area 7.5 kg/m² (not including added acoustic elements)
• Provides 75% free area.
• All acoustic addons available can  be used in conjunction with Louvre100

Application

• Available on all Configured Platforms screen systems.
• Provides a visual screen.

Versatile

• Louvre blades polyester powder coated to RAL or BS colour ranges.
• Varied pitch available
• Louvre blade can be inverted to block vision from low level.
• Configurable in 600mm increment lengths to suit your requirements.
• The lightweight aluminium design makes it easy for carrying, craning and assembly.

Installation

• Kit form allows assembly by general installer trade with our easy to follow installation manual.
• Take advantage of our approved installer network to obtain the most efficient install.

Specify Louvre100

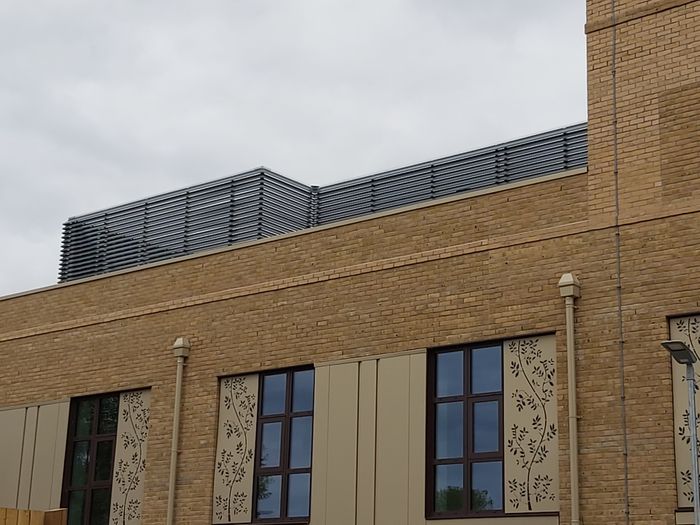

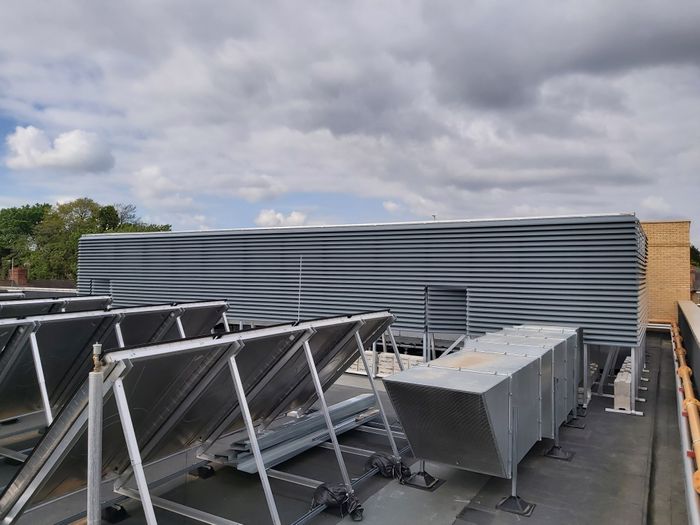

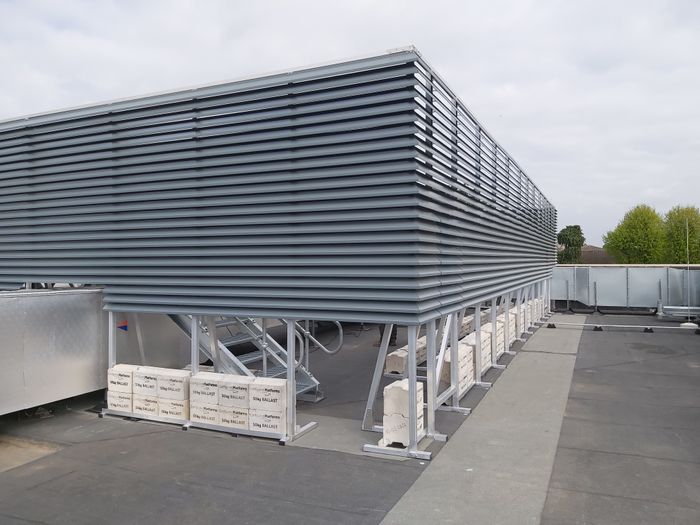

• Provide Configured Platforms Louvre100 to elevations where aesthetically required to screen off equipment, ductwork, and pipework. Specify pitch and inverted orientation or not.
• Complies to BS EN 516 2006 and BS EN 1090-3 2008
• Backed by a 20 year product warranty.

Access Gaps and Doors

• An Access Gap of any 600mm increment wide is configurable in Louvre100
• A Self Closing Access Door 900mm wide is available in Louvre100. Left hand hung opening inwards.
