Design

• Can be fitted to any sides of Configured Platforms Systems.
• Pre-assembled acoustic louvre.
• All aluminium construction box frame and louvre profile.
• Absorbent acoustic panels are hydrophobic and performance is not effected by weather conditions.

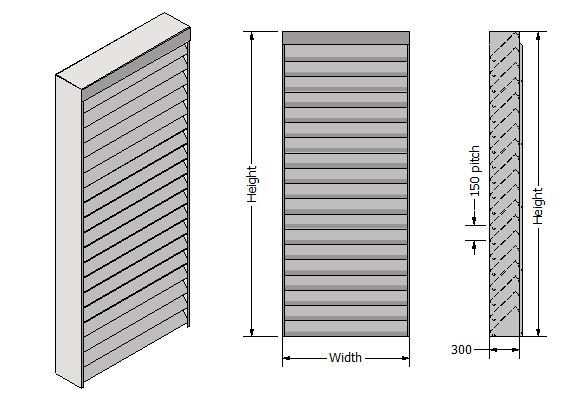

• Modular Heights: 1000mm, 1200mm, 1500mm.
• Can be stacked to suit screen height requirement.
• Free area range 36%-46% relative to louvre height.
• Acoustic louvre weight: 26kg/m²
• Acoustic test result: Rw 11dB
• Supplied with a 20 year product warranty.

Versatile

• Retrofit upgrade possible to any existing Configured Platform enclosure installation.
• The lightweight aluminium design makes it easy for carrying, craning and assembly.

Specify Peaceflow300

• Provide Peaceflow300 to elevations where aacoustics is important and airflow is required for equipment.
