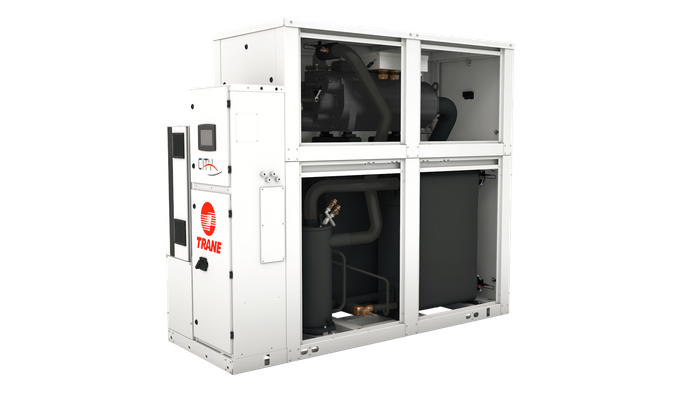

Trane City™ and XStream™ – Models RTSF HT and RTWF HT
)
The City RTSF has been designed to reduce environmental impact. This is a low global warming potential solution with industry leading efficiencies for capacities below 400 kW.
The City RTSF features low GWP (<1) R1234ze and carries the EcoWise endorsement.
The City RTSF features low GWP (<1) R1234ze and carries the EcoWise endorsement.
Model RTSF HT Hightlights:
- 99.5% reliability rate with screw compressor technology and Adaptive Frequency™ Drive as standard
- Fully optimized for HFO R1234ze (<1 GWP). Available with R515B as an alternative
- Minimized refrigerant charge with stainless steel plate heat exchangers
- Compact and modular, they particularly fit in restricted spaces. 920 mm width only
- Ideal modular HFO solution for tight spaces
- Heating up to 80°C; source temperature from -12C to +30C
Trane XStream heat pumps are a smart alternative to traditional boilers with features to effectively address the needs of geothermal and district heating applications:
• Compressors specially designed for high temperature applications
• Large capacities up to 2020 kW (at Eurovent Air Conditioning heating conditions)
• High condensing water temperatures of up to 85°C (RTWF G) allowing operation as a high temperature heat
pump or a high condensing temperature cooling system.
• High performance up to 4.8 COP (at Eurovent Air Conditioning heating conditions)
• Operates down to 10% part load requirements.
• Compressors specially designed for high temperature applications
• Large capacities up to 2020 kW (at Eurovent Air Conditioning heating conditions)
• High condensing water temperatures of up to 85°C (RTWF G) allowing operation as a high temperature heat
pump or a high condensing temperature cooling system.
• High performance up to 4.8 COP (at Eurovent Air Conditioning heating conditions)
• Operates down to 10% part load requirements.
Model RTWF Highlights:
- Market-leading reliability with Trane's renowned, robust screw compressor technology
- Minimized refrigerant charge with Trane patented CHIL falling film evaporator
- Series counterflow heat exchanger design
- Extended and unmatched capacities
- Application flexibility: High leaving water temperature up to 85°C (68°C with R134a)
- Trane Adaptive Control™: Tracer® Symbio™ 800 microprocessor system enhances chiller with the latest chiller control technology
